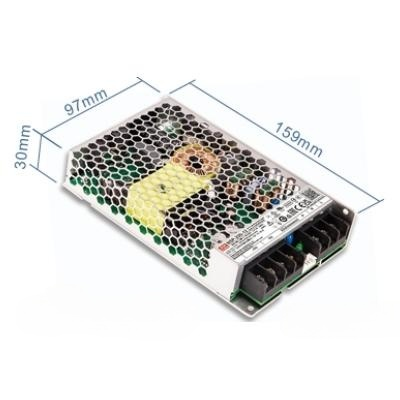

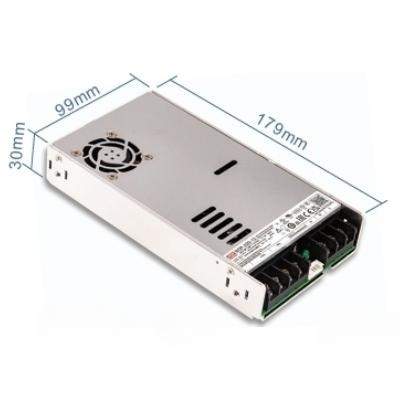

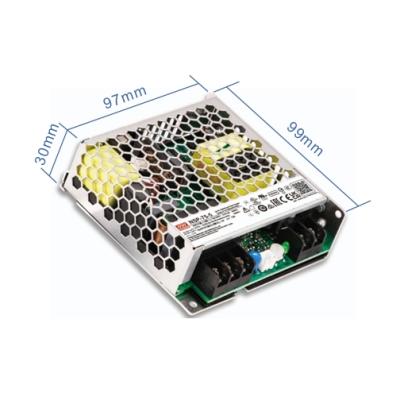

NSP Series Wattage :75W~3200W
- Product details
-
Wattage :75W~3200W
Features:
85~305Vac input with PFC
(277Vac available)
Global certificates in multi-fields
(ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/2-16/61010-1, Energy converter 62477-1)
-40~85oC wide range operation temperature (>+60oC derating), except NSP-1600/ 3200 series
Extremely low leakage current<350µA, 2 x MOPP, suitable for BF medical applications (except NSP-1600/ 3200 series)
Conformal coating
85~305Vacinput with PFC(277Vac available)
No load power consumption <0.3W~0.5W by R.C.
Global certificates in multi-fields
(ITE 62368-1,Medical 60601-1,Household 60335-1.Industrial 61558-1/2-16/61010-1,Energy converter 62477-1)
200% peak power capability(12~60V models)
High efficiency up to 92%
-40~85℃ wide range operation temperature(>+60℃ derating)
Extremelylow leakage current<350μA, 2 xMOPPsuitable for BF medical applications
Built-in constant current limiting circuit
Protections: Short circuit/Overload /Over voltage/Over temperature
Fanless design for noise sensitive applications
Built-in remote ON/OFF control
Over voltage category Il (OVC I)
Operating altitude up to 5000 meters
Conformal coating
5 years warranty
